About the iOS File System

For security purposes, an iOS app’s interactions with the file system are limited to the directories inside the app’s sandbox directory. During installation of a new app, the installer creates a number of container directories for the app inside the sandbox directory. Each container directory has a specific role. The bundle container directory holds the app’s bundle, whereas the data container directory holds data for both the app and the user. The data container directory is further divided into a number of subdirectories that the app can use to sort and organize its data. The app may also request access to additional container directories—for example, the iCloud container—at runtime.

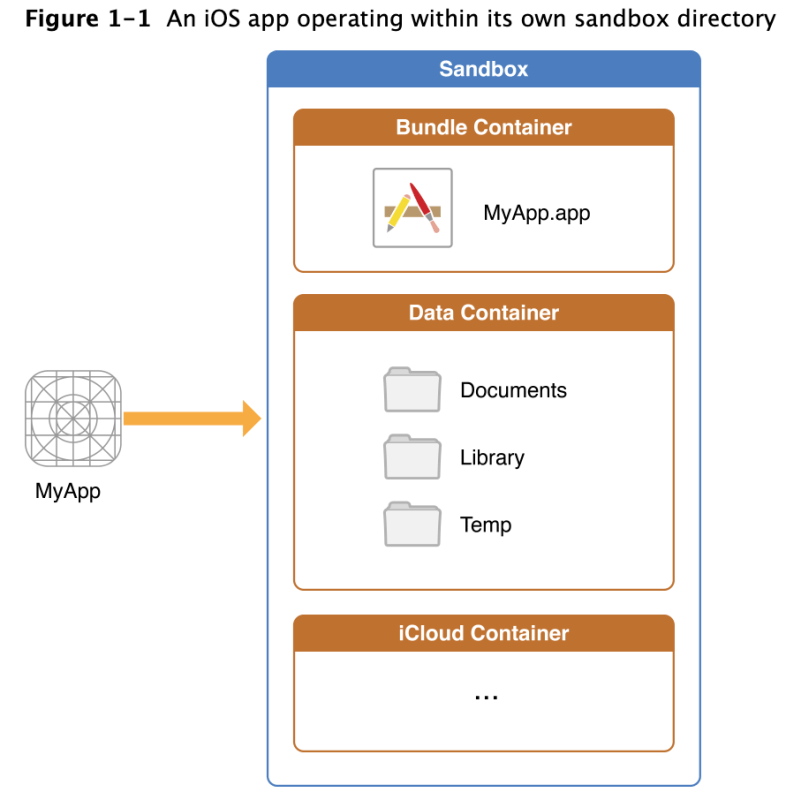

These container directories constitute the app’s primary view of the file system. Figure 1-1 shows a representation of the sandbox directory for an app.

An app is generally prohibited from accessing or creating files outside its container directories. One exception to this rule is when an app uses public system interfaces to access things such as the user’s contacts or music. In those cases, the system frameworks use helper apps to handle any file-related operations needed to read from or modify the appropriate data stores.

https://developer.apple.com/library/archive/documentation/FileManagement/Conceptual/FileSystemProgrammingGuide/FileSystemOverview/FileSystemOverview.html

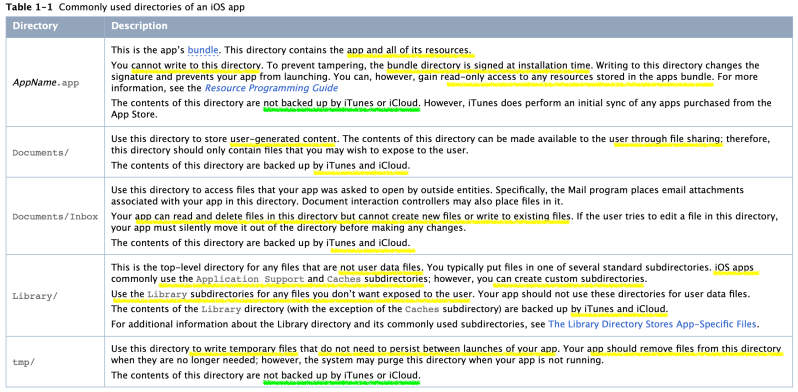

Where You Should Put Your App’s Files

To prevent the syncing and backup processes on iOS devices from taking a long time, be selective about where you place files. Apps that store large files can slow down the process of backing up to iTunes or iCloud. These apps can also consume a large amount of a user’s available storage, which may encourage the user to delete the app or disable backup of that app’s data to iCloud. With this in mind, you should store app data according to the following guidelines:

• Put user data in Documents/. User data generally includes any files you might want to expose to the user—anything you might want the user to create, import, delete or edit. For a drawing app, user data includes any graphic files the user might create. For a text editor, it includes the text files. Video and audio apps may even include files that the user has downloaded to watch or listen to later.
• Put app-created support files in the Library/Application support/ directory. In general, this directory includes files that the app uses to run but that should remain hidden from the user. This directory can also include data files, configuration files, templates and modified versions of resources loaded from the app bundle.
• Remember that files in Documents/ and Application Support/ are backed up by default. You can exclude files from the backup by calling -[NSURL setResourceValue:forKey:error:] using the NSURLIsExcludedFromBackupKey key. Any file that can be re-created or downloaded must be excluded from the backup. This is particularly important for large media files. If your application downloads video or audio files, make sure they are not included in the backup.
• Put temporary data in the tmp/ directory. Temporary data comprises any data that you do not need to persist for an extended period of time. Remember to delete those files when you are done with them so that they do not continue to consume space on the user’s device. The system will periodically purge these files when your app is not running; therefore, you cannot rely on these files persisting after your app terminates.
• Put data cache files in the Library/Caches/ directory. Cache data can be used for any data that needs to persist longer than temporary data, but not as long as a support file. Generally speaking, the application does not require cache data to operate properly, but it can use cache data to improve performance. Examples of cache data include (but are not limited to) database cache files and transient, downloadable content. Note that the system may delete the Caches/ directory to free up disk space, so your app must be able to re-create or download these files as needed.

https://developer.apple.com/library/archive/documentation/FileManagement/Conceptual/FileSystemProgrammingGuide/FileSystemOverview/FileSystemOverview.html

Library/Preferences Directory

This directory contains app-specific preference files. You should not create files in this directory yourself. Instead, use the NSUserDefaults class or CFPreferences API to get and set preference values for your app. In iOS, the contents of this directory are backed up by iTunes and iCloud.

https://developer.apple.com/library/archive/documentation/FileManagement/Conceptual/FileSystemProgrammingGuide/FileSystemOverview/FileSystemOverview.html

The iCloud File Storage Container

iCloud provides a structured system for storing files for apps that make use of iCloud:

• Apps have a primary iCloud container directory for storing their native files.  They can also access secondary iCloud container directories listed in their app entitlements.
• Inside each container directory, files are segregated into “documents” and data.  Every file or file package located in the Documents subdirectory (or one of its subdirectories) is presented to the user (via the iCloud UI in macOS and iOS) as a separate document that can be deleted individually.   Anything not in Documents or one of its subdirectories is treated as data and shown as a single entry in the iCloud UI.

Documents that the user creates and sees in an app’s user interface—for example the document browsers in Pages, Numbers, and Keynote should be stored in the Documents directory. Another example of files that might go in the Documents directory are saved games, again because they are something that an app could potentially provide some sort of method for selecting.

Anything that the app does not want the user to see or modify directly should be placed outside of the Documents directory.  Apps can create any subdirectories inside the container directory, so they can arrange private files as desired.

Apps create files and directories in iCloud container directories in exactly the same way as they create local files and directories.  And all the file’s attributes are saved, if they add extended attributes to a file, those attributes are copied to iCloud and to the user’s other devices too.

iCloud containers also allow the storage of key-value pairs that can be easily accessed without having to create a document format.

https://developer.apple.com/library/archive/documentation/FileManagement/Conceptual/FileSystemProgrammingGuide/FileSystemOverview/FileSystemOverview.html

Security: Protect the Files You Create

Sandboxes prevent apps from writing to parts of the file system that they should not write to. Each sandboxed app receives one or more containers that it can write into. An app cannot write to other apps’ containers or to most directories outside of the sandbox. These restrictions limit the potential damage that can be done in the event that an app’s security is breached.

iOS apps always run in a sandbox, the system assigns specific ACLs and permissions to files created by each app.

https://developer.apple.com/library/archive/documentation/FileManagement/Conceptual/FileSystemProgrammingGuide/FileSystemOverview/FileSystemOverview.html

Files Can Be Encrypted On Disk

iOS. An iOS app can designate files that it wants to be encrypted on disk. When the user unlocks a device containing encrypted files, the system creates a decryption key that allows the app to access its encrypted files. When the user locks the device, though, the decryption key is destroyed to prevent unauthorized access to the files.

in iOS, apps that take advantage of disk-based encryption need to be discontinue the use of encrypted files when the user locks the device. Because locking the device destroys the decryption keys, access to encrypted files is limited to when the device is unlocked. If your iOS app can run in the background while the device is locked, it must do so without access to any of its encrypted files. Because encrypted disks in macOS are always accessible while the computer is running, macOS apps do not need to do anything special to handle disk-level encryption.

https://developer.apple.com/library/archive/documentation/FileManagement/Conceptual/FileSystemProgrammingGuide/FileSystemOverview/FileSystemOverview.html

Files, Concurrency, and Thread Safety

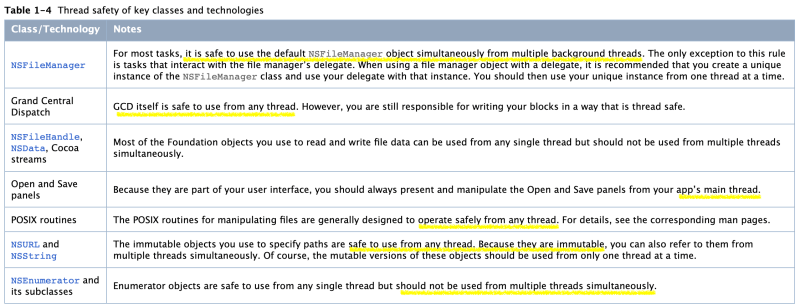

Because file-related operations involve interacting with the hard disk and are therefore slow compared to most other operations, most of the file-related interfaces in iOS and macOS are designed with concurrency in mind. Several technologies incorporate asynchronous operation into their design and most others can execute safely from a dispatch queue or secondary thread. Table 1-4 lists some of the key technologies discussed in this document and whether they are safe to use from specific threads or any thread. For specific information about the capabilities of any interface, see the reference documentation for that interface.

Even if you use an thread-safe interface for manipulating a file, problems can still arise when multiple threads or multiple processes attempt to act on the same file. Although there are safeguards to prevent multiple clients from modifying a file at the same time, those safeguards do not always guarantee exclusive access to the file at all times. (Nor should you attempt to prevent other processes from accessing shared files.) To make sure your code knows about changes made to shared files, use file coordinators to manage access to those files. For more information about file coordinators, see The Role of File Coordinators and Presenters
